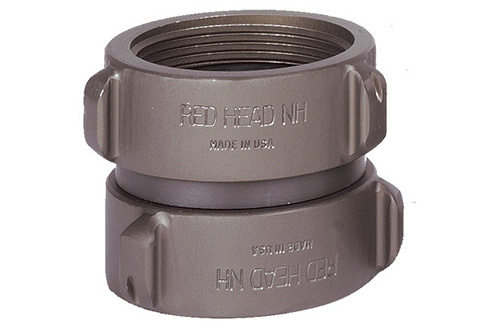

Style 35

Double Swivel Female

Available Sizes:

  • 1" thru 6"

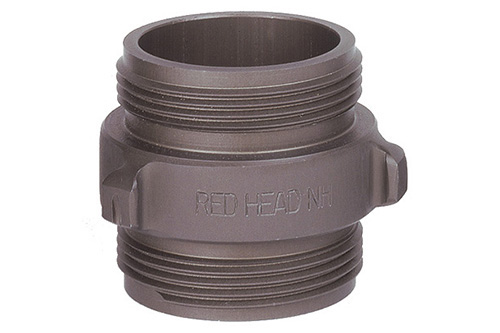

Style 36

Double Male

Available Sizes:

  • 3⁄4" x 1" thru 6"

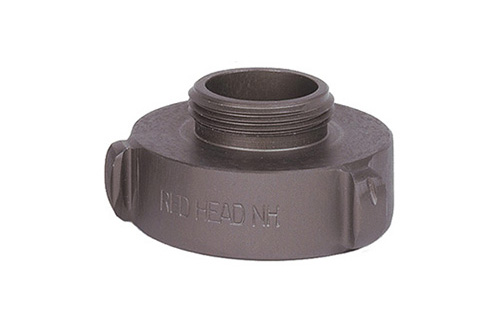

Style 37

Rocker Lug Female by Male

Available Sizes:

  • 3⁄4" x 1" thru 6"

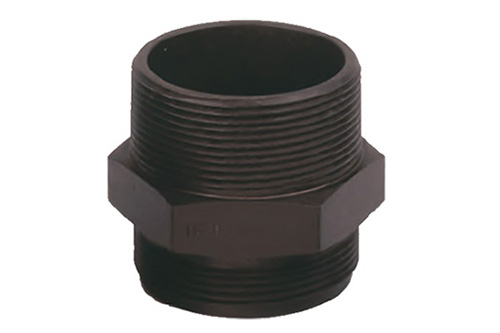

Style 36HEX

Aluminum Hex Double Male

Available Sizes:

  • 1", 1-1⁄2" and 2"

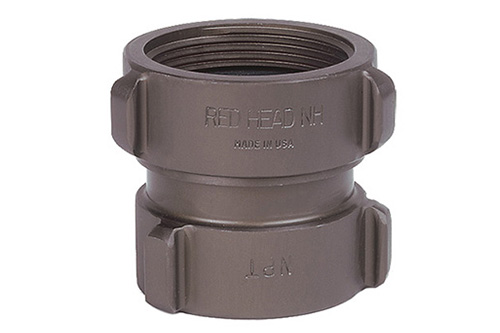

Style 53RL

Rocker Lug Swivel

Female to Rocker Lug Rigid Female

Available Sizes:

  • 3⁄4" x 1" thru 6"

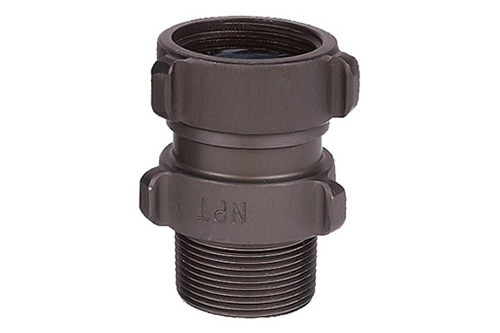

Style 54RL

Rocker Lug Swivel

Female to Male

Available Sizes:

  • 1-1⁄2" thru 6"

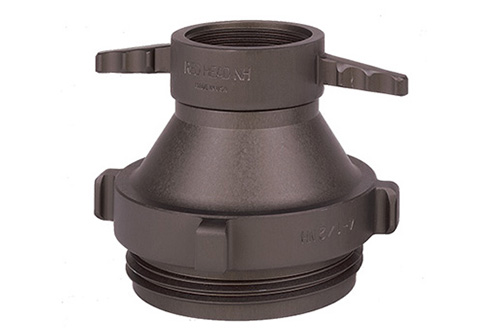

Style 54

Long Handle Swivel Female to Male

Available Sizes:

  • 2-1⁄2" thru 6"

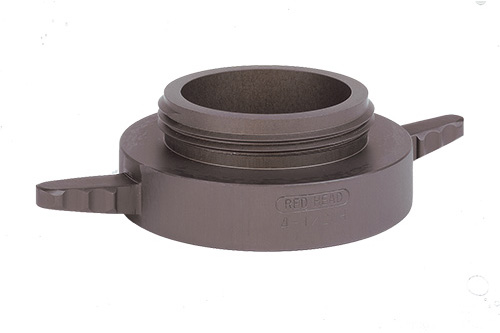

Style 56

Rigid Long Handle Female to Male

Available Sizes:

  • 4" x 2-1⁄2" thru 6" x 6"

Configurations & Features:

Ideal for changing hydrant or suction hose threads or sizes.

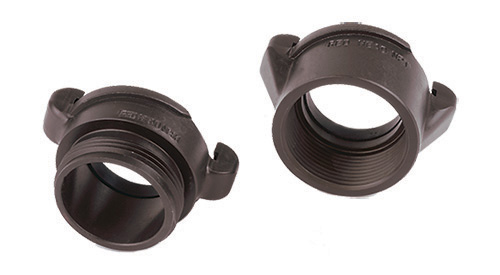

Style RHQK

Quick Connect

External Lug Forestry Adapters

Available Sizes:

  • 1-1/2" connecting face x 3/4", 1" or 1-1/2" thread sizes

Configurations & Features:

  • External lugs for faster action, in a demanding field where quick connection counts.
  • Red Head QK adapters are forged for heavy duty and dependability.
  • ULC listed – 1-1/2"
  • Meets requirements of ULC-S551.

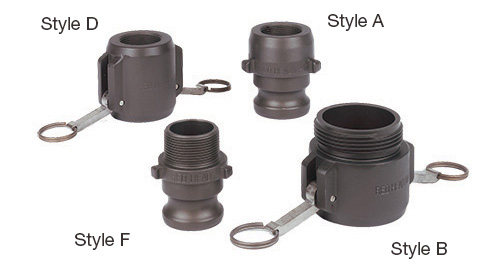

Style Cam and Groove

High Pressure

Cam & Groove Adapters

Available Styles and Sizes:

  • Style A: Cam Male x Threaded Female 1-1/2", 2", 2" x 1-1/2" or 2-1/2"
  • Style B: Cam Female x Threaded Male 1-1/2", 2" or 2-1/2"
  • Style D: Cam Female x Threaded Female 1-1/2", 2", 2" x 1-1/2" or 2-1/2"
  • Style F: Cam Male x Threaded Male 1-1⁄2", 2" or 2-1⁄2"

Configurations & Features:

  • All Cam & Groove connections conform to A-A-59326B (MIL-C-27487).
  • Handles and pins are 316 stainless steel.
  • Working pressure of 750 PSI.

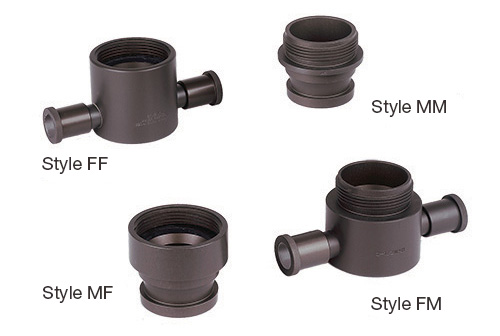

Style BIT

British Instantaneous Adapters

Available Styles and Sizes:

  • Style MF: BIT Male x Threaded Female 2-1⁄2" BIT x 1-1⁄2" thru 2-1/2" THREAD
  • Style MM: BIT Male x Threaded Male 2-1⁄2" BIT x 1-1/2" thru 2-1/2" THREAD
  • Style FF: BIT Female x Threaded Female 2-1⁄2" BIT x 1-1/2" thru 2-1/2" THREAD
  • Style FM: BIT Female x Threaded Male 2-1/2" BIT x 1-1/2" thru 2-1/2" THREAD

Configurations & Features:

  • All 2-1⁄2" connections conform to the BS 336 standard.
  • Working pressure of 15 BAR or 218 PSI.
