The Red Head Brass Commitment to Quality

Red Head nozzles are machined from 6061-T6 aluminum seamless extrusions.

The finish is a polished hardcoat anodize to MIL-A-8625 Type III, Class 1 except SS-1, which is hardcoat anodized but not polished.

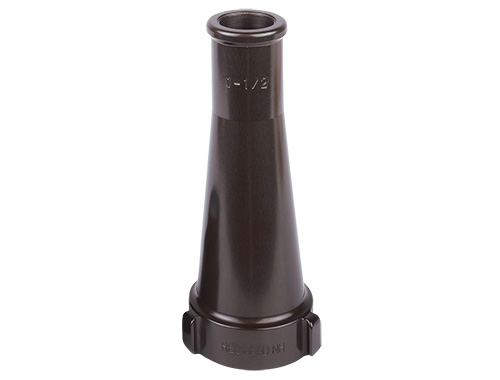

Style DT-1

Deluge Tip

Configuration

  • Length: 9"
  • Base: 2-1/2"
  • Orifice: 1-1/2"

Style SS-1

Stream Straightener

Configuration & Features

  • Length: 3"
  • Inlet: 2-1/2"
  • Outlet: 2-1/2"
  • Use with all large volume discharge devices for increased range and effective reach
  • Complete with stream straightener fins

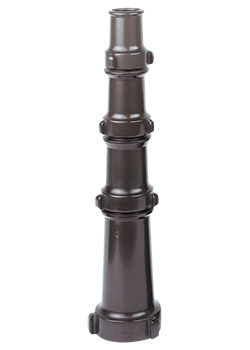

Style ST-4

Quad Deluge

Stack Tip

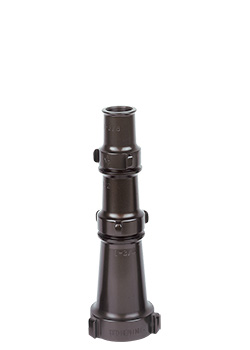

Style ST-3D

Triple Deluge

Stack Tip

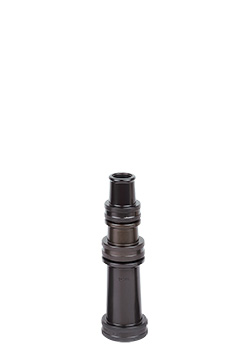

Style ST-3H

Triple Handline

Stack Tip

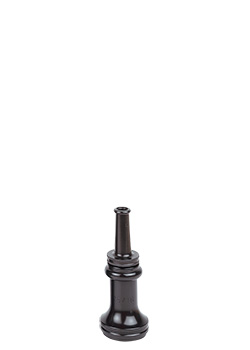

Style ST-2

Double

Stack Tip

Configuration & Features

Style Length   Base Middle Middle 2
(Quad)
Top
Style ST-2
Double Stack Tip
6-3/4" Threads 1-1/2" NH     1"
Orifice 15/16"     1/2"
Optional Orifice 1-1/8"     1/2"
Style ST-3H
Triple Handline Stack Tip
8-1/2" Threads 1-1/2" NH 1-1/2" NH   1-1/4" NPSH
Orifice 1-1/4" 1-1/8"   1"
Style ST-3D
Triple Deluge Stack Tip
12" Threads 2-1/2" NH Underwriters PP   1-1/2" NH
Orifice 1-3/4" 1-1/2"   1-3/8"
Style ST-4
Quad Deluge Stack Tip
17" Threads 2-1/2" NH 2" NH Underwriters PP 1-1/2" NH
Orifice 2" 1-3/4" 1-1/2" 1-3/8"
