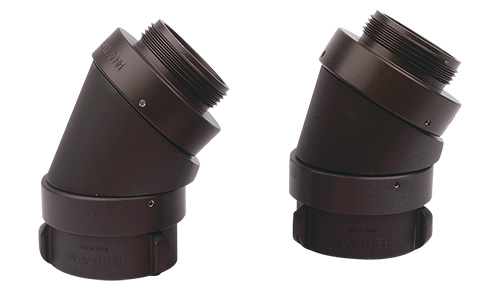

Style E

Hardcoat Anodized Aluminum Elbow

Available Sizes:

  • 2-1/2" thru 6" in either 30 or 45 degree elbow

Configurations & Features:

  • Design allows for any size configuration including reducers or increasers plus any thread desired on the connections. Note: Swivel not available with NPT
  • Machined from 6061-T6 seamless extrusions, the elbows are assembled with 4 individual threaded parts including a swivel connected using #316 stainless steel ball bearings or 6262-T9 aluminum roller bearings
  • Design allows changes to or repairs of damaged threads without sacrificing the entire unit
  • All four component parts are individually hardcoat anodized to MIL-A-8625 Type III, Class 1
  • No Welded Components in the elbow

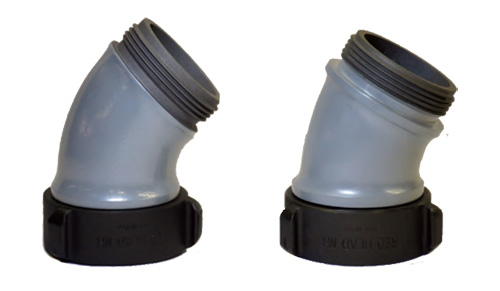

Style AL-E

Lightweight Aluminum Elbow

Available Sizes:

  • 2-1/2" rocker lug swivel female to rigid male in either 30 or 45 degree elbow

Configurations & Features:

  • Elbow body cast from Alloy A319, AAA319 aluminum and powder coated silver finish
  • Swivels are machined from 6061-T6 seamless extruded aluminum and hardcoat anodized
  • Swivels connected to body using #316 stainless steel ball bearings
