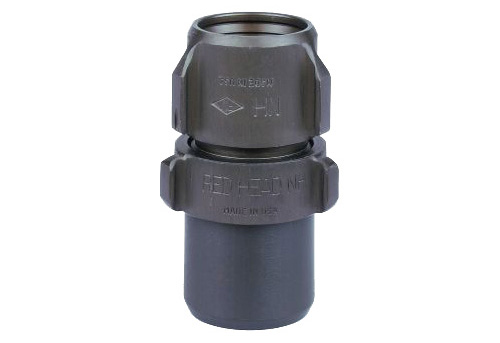

Style 7700

Aluminum Heavy Duty

Expansion Ring Couplings

Available Sizes:

  • 1″ thru 6″

Configurations & Features:

  • 1″ – Two rocker lugs on male and swivel
  • 1-1/2" thru 3-1/2" – Three rocker lugs on male and swivel
  • 4″ thru 6″ – Four rocker lugs on male and swivel
  • 7715 (1-1/2") and 7725 (2-1/2") are FM Approved
  • Meets A-A-59227A, Type A, Style 1, Type B (WW-C-621G) and A-A-59226 (ZZ-H-451G) latest revision

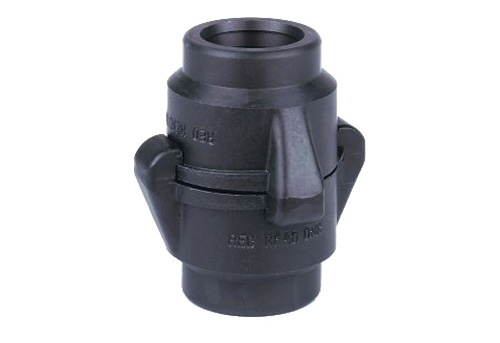

Style RHQK

Quick Connect External Lug

Forestry Expansion Ring Couplings

Available Sizes:

  • 1-1/2″ connecting face for either 1″ or 1-1/2″ forestry hose

Configurations & Features:

  • Made from aluminum forgings
  • External lugs for faster action in a demanding field where quick connection counts
  • No threads to damage, hang up, or seize … for complete reliability
  • ULC listed 1-1/2″
  • Meets requirements of ULC-S551

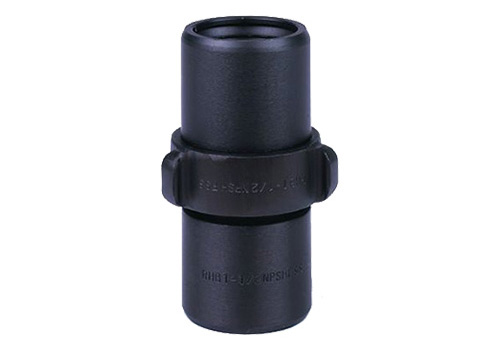

Style F

USDA Forestry Couplings

Available Sizes:

  • 1″, 1-1/2″ and 2-1/2″

Configurations & Features:

  • 1″ – Two rocker lugs on swivels only
  • 1-1/2″ and 2-1/2″ – Three rocker lugs on swivel only
  • Meets USDA Forest Service Spec 5100-108

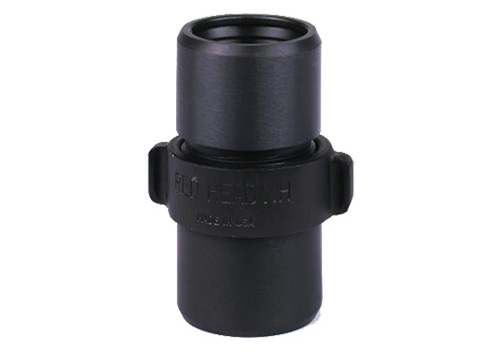

Style R

Aluminum Rack Hose Couplings

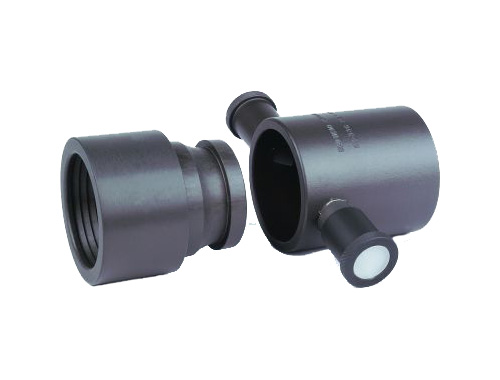

Style BIT

Aluminum British Instantaneous

Hose Couplings

Available Sizes:

  • 2-1/2″ only

Configurations & Features:

  • Working pressure of 15 Bar or 218 PSI
  • All 2-1/2″ connections conform to the BS 336 standard

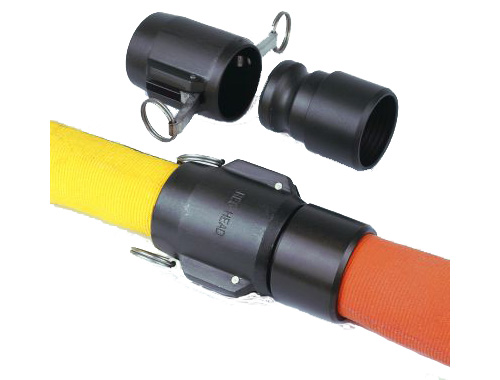

Style RHCE

Aluminum Cam & Groove

Hose Couplings

Available Sizes:

  • 1-1/2″, 2″ and 2-1/2″

Configurations & Features:

  • Slim-line profile reduces drag and hang-ups
  • Handles and pins are 316 stainless steel
  • Face Seal gaskets are long lasting Buna-N
  • Working pressure of 750 PSI
  • Meets A-A-59326B (Mil-C-27487)
  • Meets ASTM F1122
