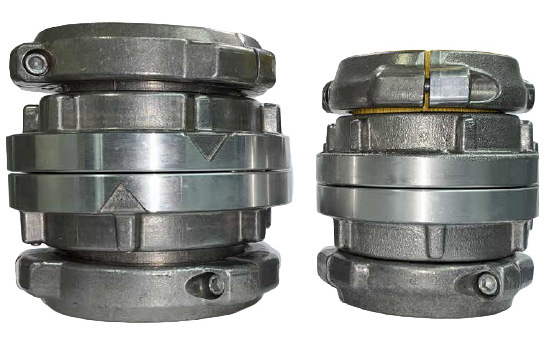

Style SKT A-Line

Storz Reattachable Couplings

Available Sizes:

  • 4"and 5"

Configurations & Features:

  • Storz re-attachable couplings for rubber covered, single jacketed hose
  • High value at a lower cost for the right applications
  • Surface finish exhibits both machined & smooth cast finish
  • Aluminum alloy ASTM B686 developed for high strength permanent mold aluminum castings
  • Each coupling half is Three pieces: head, tail, collar assembly
  • Precision aluminum Locking levers
  • Field proven over 15 years through an excess of 50,000 applications

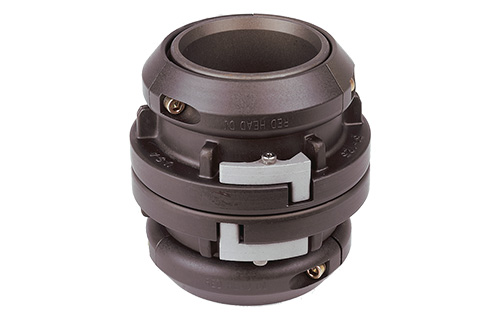

Style SKT

Storz Reattachable Couplings

Available Sizes:

  • 4", 5" and 6"

Configurations & Features:

  • For rubber covered, lightweight double jacketed or triple duty hose
  • Tapered design reduces hang-up when dragging
  • Reattachable in the field, requires only an Allen wrench to assemble or disassemble
  • When ordering, specify whether hose is rubber covered, lightweight double jacket or triple duty
  • Stainless steel lock levers on all Style SKT couplings
  • Fabricated from seamless extruded 6061-T6 aluminum, hardcoat anodized per MIL-A-8625 Type III, Class 1

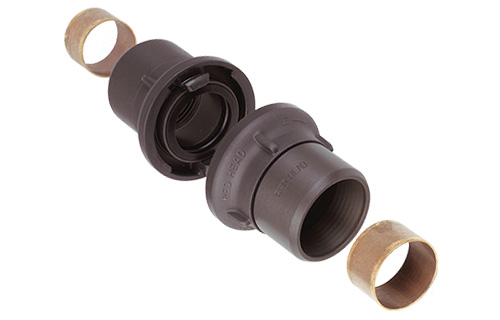

Style SEX

Storz Coupling

Available Sizes:

  • 1-1/2" Storz (1-1/2" and 1-3/4"hose)
  • 2-1/2" Storz (2-1/2" hose)

Configurations & Features:

  • For rubber and double jacketed attack/supply hose
  • Complete with expansion rings and gaskets
  • Tapered design reduces hang-up when dragging
  • Made of lightweight 6061-T6 seamless aluminum and forged heads
  • When ordering, specify hose bowl size
  • Special expansion unit required for assembly of 1-1/2" and 1-3/4"hose″
  • Fabricated from seamless extruded 6061-T6 aluminum, hardcoat anodized per MIL-A-8625 Type III, Class 1

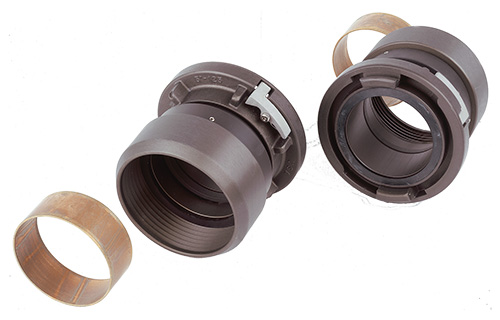

Style S-299-L

Storz Coupling

Available Sizes:

  • 4", 5" and 6

Configurations:

  • For use with hard suction hose
  • Tapered design reduces hang-up when dragging
  • Complete with expansion rings and gaskets
  • Stainless steel lock levers on all Style S-299-L couplings
  • Fabricated from seamless extruded 6061-T6 aluminum, hardcoat anodized per MIL-A-8625 Type III, Class 1
