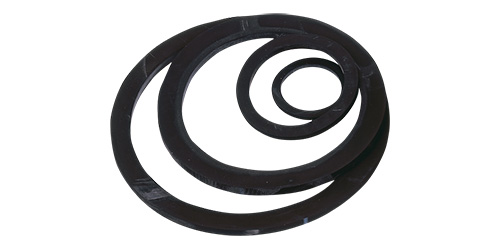

Storz Molded Gaskets, Gaskets

Available Sizes:

  • 1" thru 6"

Configurations - Gaskets:

  • Lathe cut tail gaskets, swivel gaskets and booster gaskets
  • When ordering, specify if tail, swivel or booster gasket
  • If tail gasket, specify bowl size or hose O.D. and type of hose; i.e. single jacket, double jacket, rubber covered, soft suction or hard suction

Configurations - Storz Molded Gaskets:

  • The Buna-N material we use is resistant to most hydrocarbons, oils, gasoline, acids, and greases
  • All Storz couplings and adapters are supplied with pressure gaskets
  • All Storz caps are supplied with suction gaskets

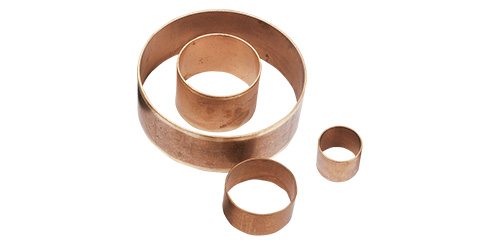

Expansion Rings

Available Sizes:

  • 1" thru 6"

Features:

  • Made from 85/15 red brass for maximum expansion without danger of breaking
  • Chamfered edge prevents risk of cutting hose
  • Machined from globally sourced raw materials

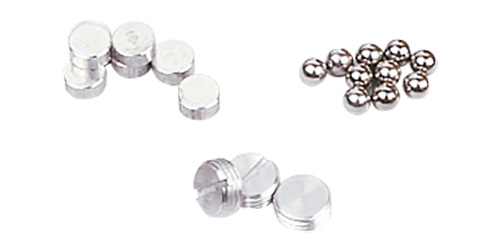

Bearings and Plugs

Available Sizes:

  • 2-1/2" thru 6"

Configurations & Features:

  • #316 stainless steel ball bearings - used for swivel attachment on rocker lug couplings 3" to 3-1/2", long handle couplings 2-1/2" thru 3-1/2" and all swivel adapters 2-1/2" thru 3-1/2"
  • Globally sourced 6262-T9 aluminum roller bearings - used for swivel attachment on all fittings 4" thru 6"
  • Bearing retainer plugs for ball bearings or roller bearings

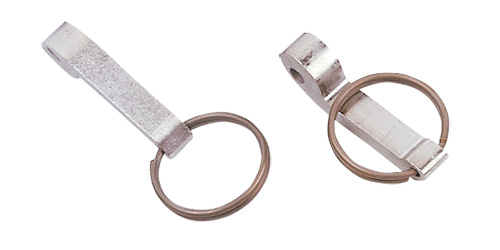

Camlock Kits

Configurations:

  • Replacement arms, pins and rings for Cam and Groove couplings and adapters

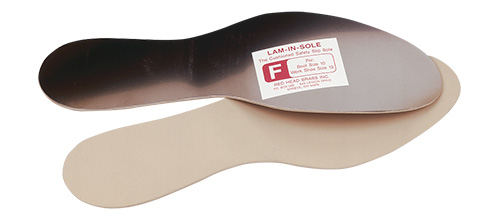

Lam-n-Sole

Safety Insoles

Features:

  • Shaped, flexible .020" stainless steel with 1⁄16" thick foam latex pad for comfort
  • Slip into boots, work shoes, dress shoes, even jogging shoes to protect your feet from hazards such as nails, broken glass, sharp metal and barbed wire

Lam-n-Sole

Size Equivalent Chart

Code Letter Work Shoe Size Rubber Boot Size
AA 6 4
A 7 5
B 8 6
C 9 7
D 10 8
E 11 9
F 12 10
G 13 11
H 14 12
I 15 13
